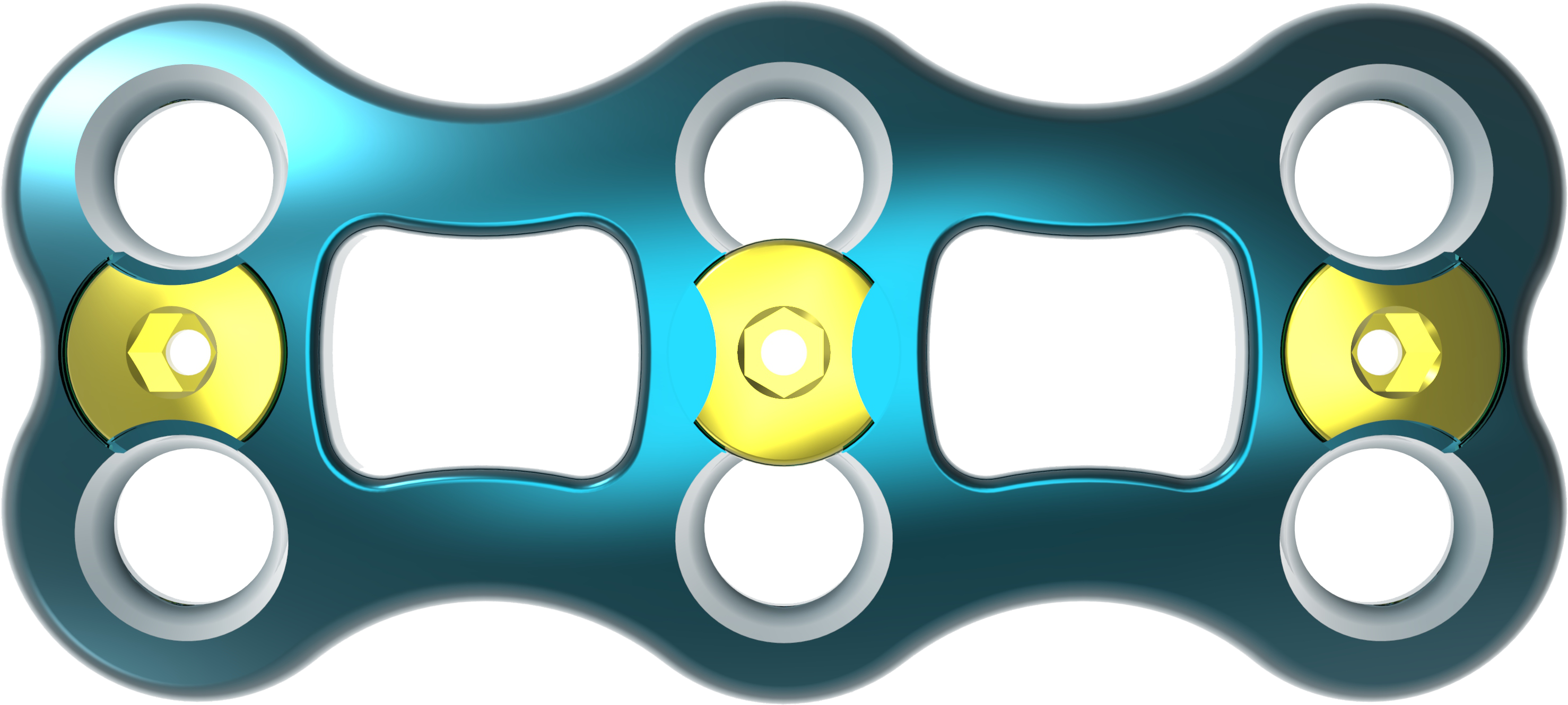

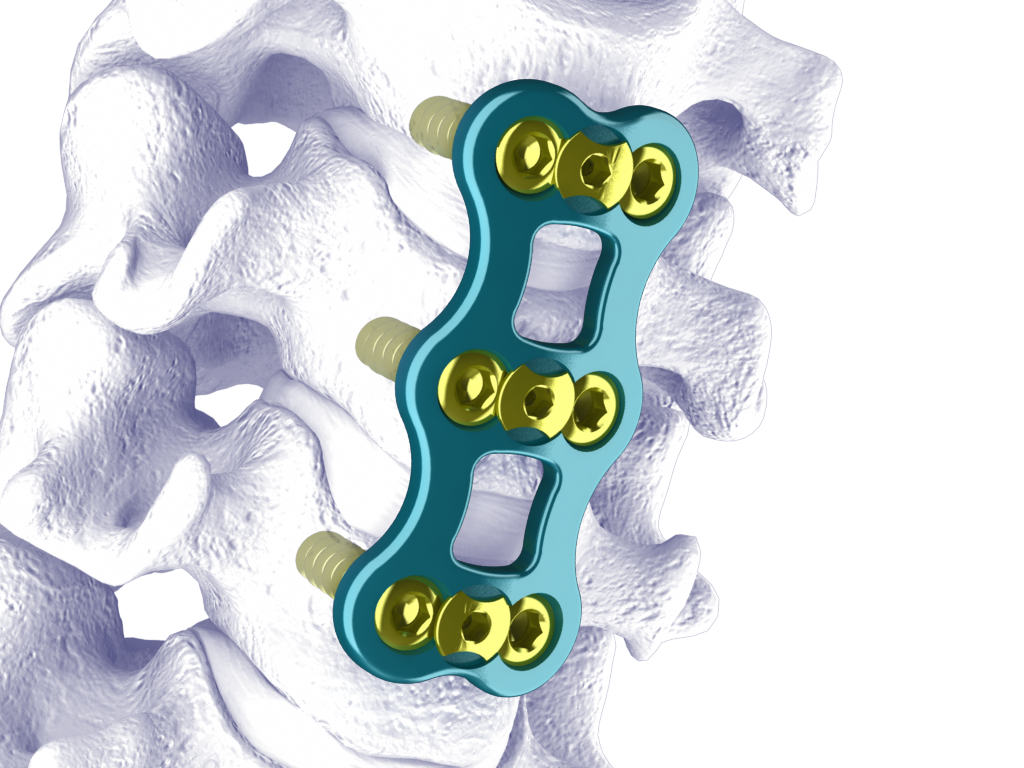

11124 Anterior Cervical Plate
| Product No. | Holes | Length |
| 11124-(022-032) | 4 | 22.5/25/27.5/30/32.5 |
| 11124-(135-147) | 6 | 35/37.5/40/42.5/45/47.5 |
| 11124-(022-032) | 8 | 50/52.5/55/57.5/60/62.5/65/70 |

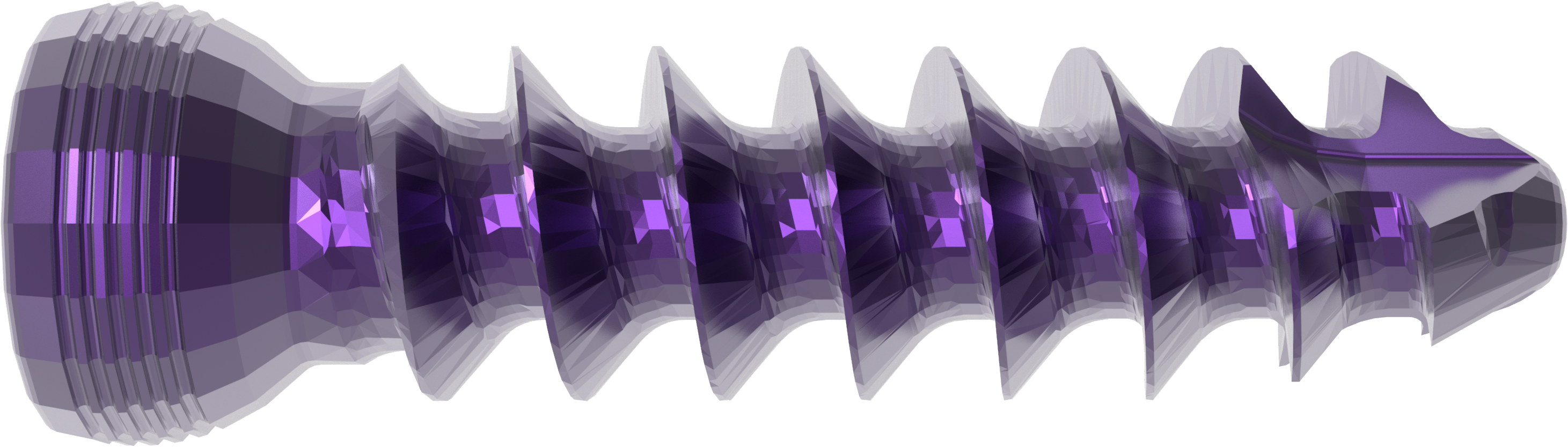

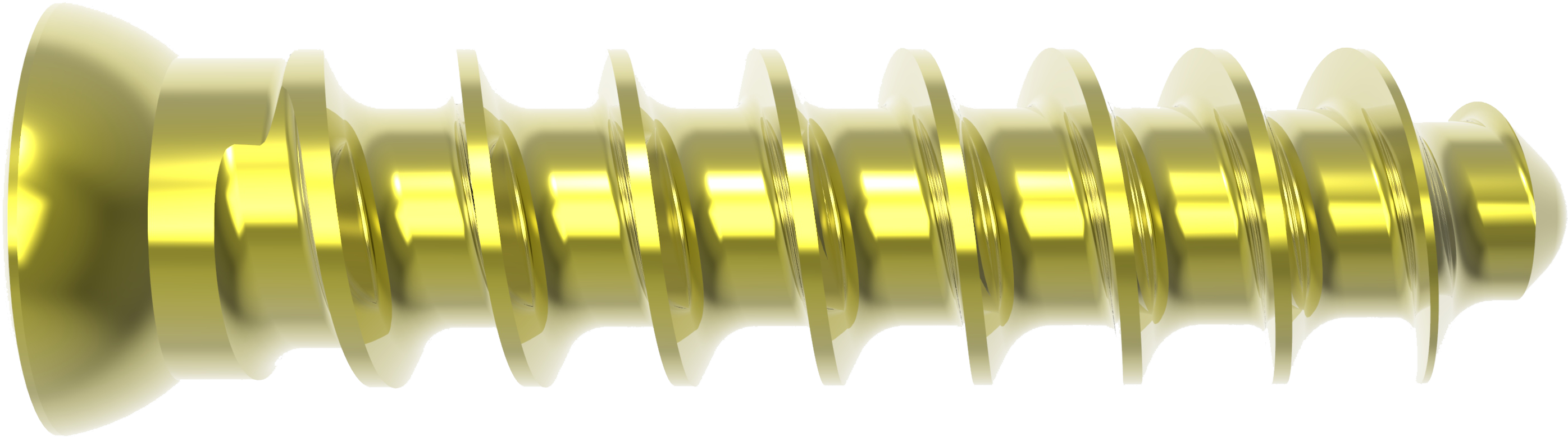

11125 Vertebral Screw
| Product No. | Dia | Length |
| 11125-(012-018) | 3.5 | 12/14/16/18 |
11125 Vertebral Screw
| Product No. | Dia | Length |
| 11125-(112-118) | 3.5 | 12/14/16/18 |

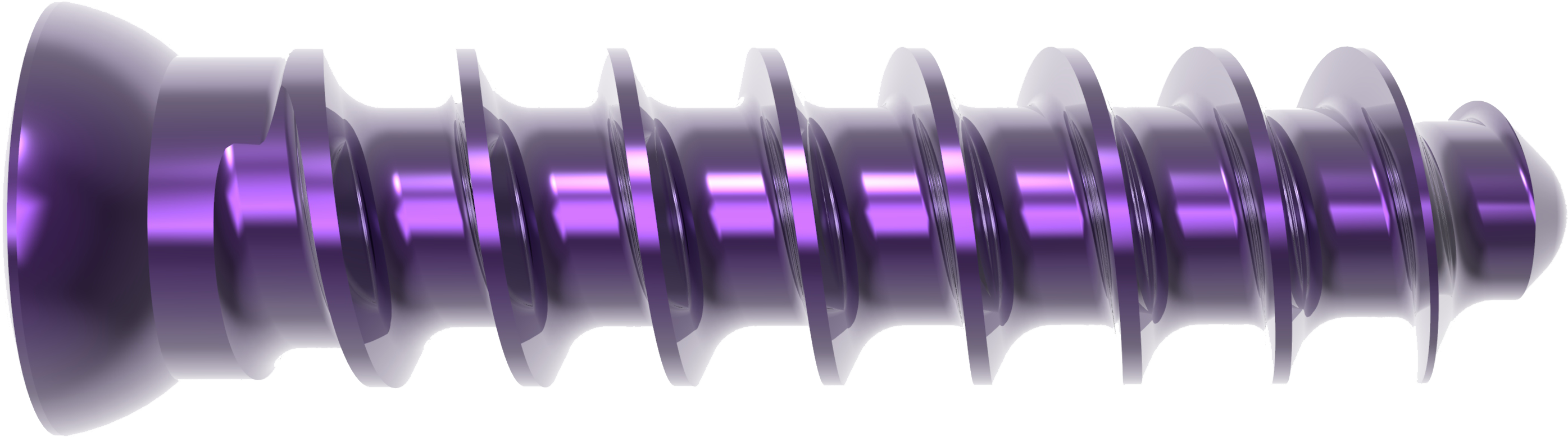

11126 Revision Screw
| Product No. | Dia | Length |
| 11126-(012-018) | 2.5 | 12/14/16/18 |
Zero-profile or near zero-profile design reduces the risk of soft tissue irritation and dysphagia.
The implant fits entirely within the disc space, minimizing anterior prominence.
Modular or integrated options provide flexibility for surgeon preference.
Some systems include pre-assembled plates and screws, simplifying the implantation process.
Offers both fixed-angle and variable-angle screws for controlled fixation and tailored biomechanical support.
Self-tapping screws reduce surgical steps and bone trauma.
Secure locking mechanism prevents screw loosening or backing out over time, enhancing construct stability.
Options for titanium (often 3D-printed porous for osteointegration) or PEEK cages (radiolucent with radiographic markers).
Both materials support bone fusion while allowing imaging compatibility.
Available in a range of heights, footprints, and lordotic angles for personalized fit and sagittal alignment restoration.
Generous graft window for maximum bone graft volume.
Optimized design to promote bony fusion between vertebral bodies.
Ergonomic instruments designed for precise placement, minimal retraction, and reduced OR time.
Color-coded and intuitive tools aid intraoperative efficiency.
FDA-cleared and/or CE-marked, ensuring compliance with major regulatory bodies.
The WALEN Anterior Cervical System is intended for anterior cervical interbody fusion procedures at one or more levels (typically C2–T1) in skeletally mature patients for the treatment of:
Defined as discogenic neck pain with degeneration of the disc confirmed by patient history and radiographic studies.
Includes cervical osteophytes, loss of disc height, and/or spinal canal narrowing due to degenerative changes.
For patients with symptomatic disc herniation causing nerve root or spinal cord compression.
Narrowing of the cervical spinal canal causing neurological symptoms.
Including trauma (e.g., minor fractures), post-surgical instability, or instability due to degenerative changes.
Revision procedures where prior cervical fusion has failed to achieve solid arthrodesis.
To be used in conjunction with bone graft material to facilitate fusion.
The device is intended for single-use implantation.
locking copmression plate brochure.pdf
The WALEN system is used in anterior cervical discectomy and fusion (ACDF) procedures to treat conditions such as degenerative disc disease, herniated discs, cervical spondylosis, and instability between C2–T1 vertebrae.
It is a zero-profile or low-profile integrated interbody device with anterior screw fixation. It may include titanium or PEEK cage options, depending on the model.
It is typically indicated for one or two adjacent cervical levels (e.g., C3–C4, C5–C6). Some models may support up to three levels depending on regulatory approvals and surgeon assessment.
Titanium alloy (Ti-6Al-4V) – for plate and screw components, or full implants in some versions.
PEEK (polyether ether ketone) – an option for radiolucent cages with embedded radiographic markers.
The WALEN system offers both:
Fixed-angle screws for rigid stability.
Variable-angle screws (typically up to 15°–20°) to accommodate patient anatomy and facilitate optimal placement.
Yes. It features an anti-backout locking mechanism to prevent screw loosening after implantation, enhancing long-term construct stability.
The WALEN cage includes a central graft window and is compatible with:
Autograft (preferred)
Allograft
Synthetic bone graft substitutes (as per surgeon preference and hospital protocol)
Multiple heights, footprints, and lordotic angles (typically 6°, 8°, or 12°) are available to restore cervical alignment and accommodate patient anatomy.
Yes, the system is indicated for revision procedures such as pseudoarthrosis or hardware failure from previous ACDF surgeries.
Yes. All components are made from non-ferromagnetic materials, making the system MRI-conditional. Always verify with the specific product IFU for MRI safety labeling.
The WALEN Anterior Cervical System is:
FDA 510(k) cleared (U.S.)
CE marked (Europe), where applicable
May have additional regional registrations depending on market
